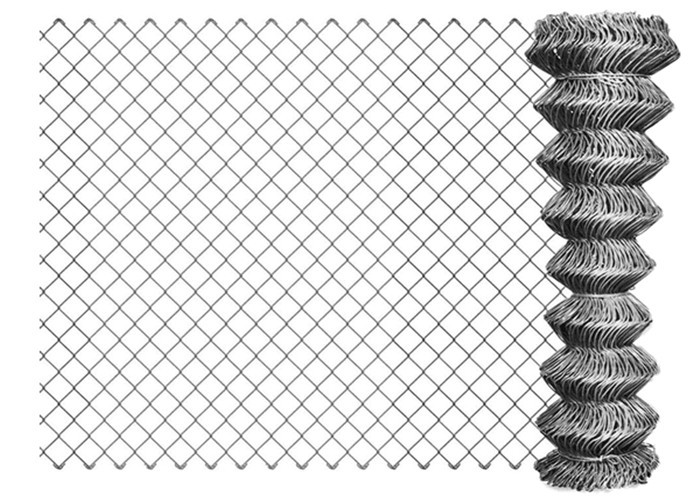

5 Feet Chain Link Fabric And 8FT Chain Link Fencing Rolls With 1-inch Mesh
Chain Link Fencing rolls Weaving and characteristics
The mesh is even in size and smooth in the surface;
The weaving is simple, artistic and practical;
The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.
1. Using the development machinery to make surface treatment finished low carbon steel wire into performing form, then linking them together.
2. The edge of the link chain fence: It is divided into two types. One type is a twisted one.
Using special tools to make the edge hemming or twisting.
The hemmed edge is more popular compared with the twisted edge. Customers can choose to their own needs.
3. The construction of chain link fence: we use the advanced machines to make the roll diameter of the chain link fence into the smallest one, in order to save transportation costs by saving volume.
Packing: Wrap up the two edges of the crimpled rolls with the weaving bags.
Chain Link Fencing Rolls Specification
| Mesh | Hot Dipped | PVC Coated |
| Wire BWG | Wire Dia. (mm) | Weight kg/m2 | | Roll
Dia4' ×50'(mm) | Wire Dia. Before/after | Weight kg/m2 | | Roll Dia
4'×50'(mm) |
| 1''
(25mm) | 12 | 2.8 | 3.81 | 15.5 | 220 | 1.6/3.2 | 3.7 | 22.7 | 280 |
| 13 | 2.4 | 2.9 | 12.2 | 200 | 2.0/2.6 | 2.3 | 15.4 | 240 |
| 14 | 2.1 | 2.3 | 9.75 | 180 | 1.4/2.0 | 1.2 | 8.5 | 220 |
| 16 | 1.6 | 1.34 | 6.4 | 160 | 1.0/1.6 | 0.7 | 507 | 200 |
| 1.5''
(40mm) | 10 | 3.4 | 3.7 | 14.6 | 280 | 3.4/4.0 | 3.9 | 23.7 | 290 |
| 11 | 3.0 | 3 | 12.0 | 250 | 2.6/3.2 | 2.4 | 14.7 | 280 |
| 12 | 2.8 | 2.4 | 10.0 | 230 | 2.0/2.6 | 1.4 | 9.4 | 240 |
| 14 | 2.1 | 1.4 | 6.2 | 220 | 1.4/2.0 | 0.8 | 5.5 | 220 |
| 2''
(50mm) | 8 | 4.2 | 4.5 | 18.4 | 280 | 3.4/4.0 | 3.2 | 19.6 | 280 |
| 10 | 3.4 | 2.9 | 11.8 | 250 | 2.6/3.2 | 1.9 | 12.2 | 250 |
| 12 | 2.8 | 1.9 | 8.0 | 230 | 2.0/2.6 | 1.2 | 8.4 | 230 |
| 14 | 2.1 | 1.2 | 5.4 | 220 | 1.4/2.0 | 0.6 | 4.4 | 220 |
| 2.25''
(56mm) | 8 | 4.2 | 3.9 | 14.8 | 290 | 3.4/4.0 | 2.8 | 17 | 280 |
| 10 | 3.4 | 2.6 | 10.5 | 280 | 2.6/3.2 | 1.7 | 10.8 | 250 |
| 12 | 2.8 | 1.7 | 7.3 | 250 | 2.0/2.6 | 1.0 | 7.1 | 230 |
| 14 | 2.1 | 1.0 | 4.5 | 220 | 1.4/2.0 | 0.55 | 4.3 | 220 |
| 2.4''
(62.50mm) | 8 | 4.2 | 3.7 | 14.3 | 290 | 3.4/4.0 | 2.6 | 16.4 | 290 |
| 10 | 3.4 | 2.5 | 10.1 | 280 | 2.6/3.2 | 1.6 | 10.6 | 280 |
| 12 | 2.8 | 1.63 | 6.8 | 250 | 2.0/2.6 | 1.0 | 6.6 | 250 |
| 14 | 2.1 | 1.00 | 4.6 | 220 | 1.4/2.0 | 0.48 | 3.85 | 230 |
| 2.5''
(64mm) | 8 | 4.2 | 3.5 | 14.8 | 290 | 3.4/4.0 | 2.5 | 15.4 | 300 |
| 10 | 3.4 | 2.3 | 9.4 | 280 | 2.6/3.2 | 1.5 | 9.8 | 280 |
| 12 | 2.8 | 1.6 | 6.5 | 250 | 2.0/2.6 | 0.9 | 6.5 | 250 |
| 14 | 2.1 | 0.9 | 4.2 | 220 | / | / | / | / |
| 3''
(76mm) | 8 | 4.2 | 3.00 | 11.7 | 300 | 4.4/5.0 | 3.4 | 20.6 | 300 |
| 10 | 3.4 | 2.00 | 8.2 | 290 | 3.4/4.0 | 2.1 | 13.0 | 280 |
| 12 | 2.8 | 1.3 | 5.7 | 280 | 2.6/3.2 | 1.3 | 8.8 | 250 |
| 14 | 2.1 | 0.8 | 3.8 | 250 | / | / | | |
