Galvanized 9 Gauge Chain Link Fence Fabric For Garden Boundary Wall
Chain Link Fence Fabric Application:
widely used in school playgrounds,so it's well known as Playground fence,Sport fence. Chain link fence is extensively used as fence for school,playground,garden,high-way,railway port,residence,etc.Also can be used for breeding animals.Children's Playgrounds,Playing Fields,Recreational Grounds.
Chain Link fence Fabric specification
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
| 40x40mm 50x50mm 60x60mm 65x65mm 75x75mm | 2.0mm - 4.8mm | Galvanized and PVC coated Or Hot dipped galvanized | 10m 15m 18m 20m 25m 30m | 1200mm |
| 1500mm |
| 1800mm |
| 2000mm |
| 2100mm |
| 2400mm |
| 2500mm |
| 3000mm |
| 3600mm |
| Profile | Wall Thickness | Surface Treatment | Length | Rain hat |
| Φ60 | 1.50mm - 5.20mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | On the basis of panel height | Metal |
| Φ75 |
There are two kinds of weave type image of chain link fence fabric
Galvanized Steel chain link fence fabric is available in mesh sizes from 3/8" to 2", and in heights from 36" to 144". Unless otherwise specified, chain link fence fabric woven with a 2" mesh and 60" or less in height is knuckled at both selvages. For fabrics 72" and taller, the selvage is knuckled at one edge and twisted at the other. All fabrics woven into mesh sizes under 2" are knuckled at both selvages.
Chain Link Fence Fabric Additional Specification
| Opening (mm) | 1” | 1.5” | 2” | 2-1/4” | 2-3/8” | 2-1/2” | 2-5/8” | 3” | 4” |
| 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
| Wire diameter | 18#-13# | 16#-18# | 18#-7# |
| 1.2-2.4mm | 1.6-4.2mm | 2.0-5.0mm |
| Length | 0.50m-100.0m |
| Width | 0.5m-5.0m |
| Material | Low carbon steel wire,galvanized wire,PVC coated wire |
| Finished | electro galvanized,hot dipped galvanized,PVC coated,stainless steel |
| Edge type | Twisted,Knuckle,Twisted-knuckle |
| Color | green, white, black, brown, blue, etc. Or as your requirement. |
This is the image of the chain link fence fabric for garden boundary wall.

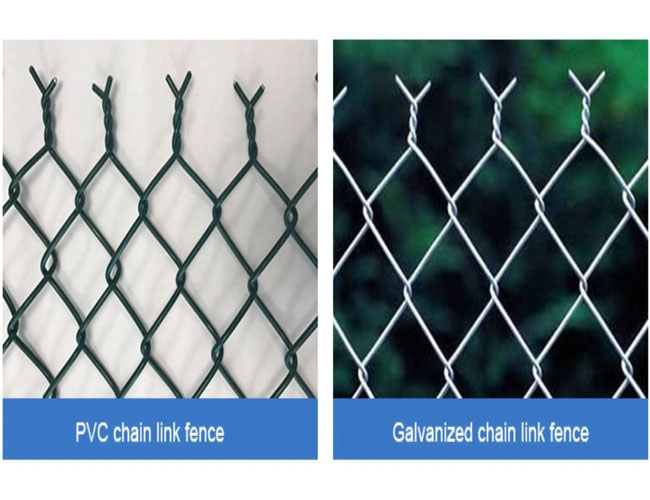

Two types:PVC chain link fence fabric and Galvanized chain link fence fabric.

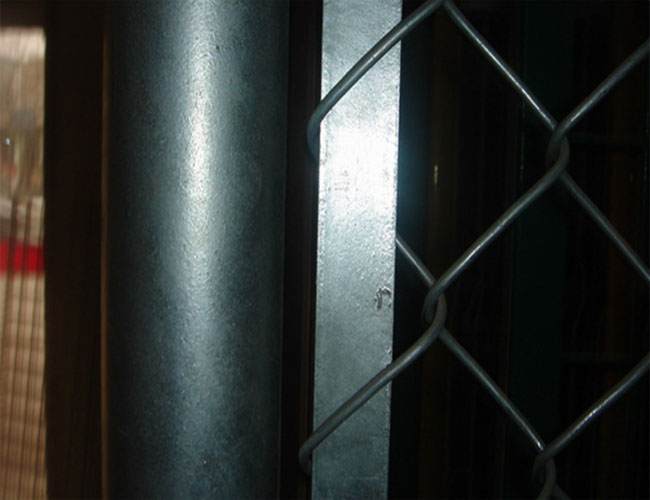

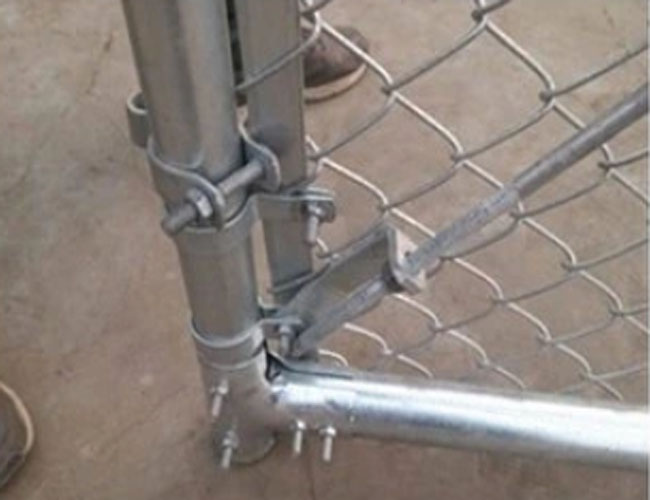

Details of chain link fence fabric
