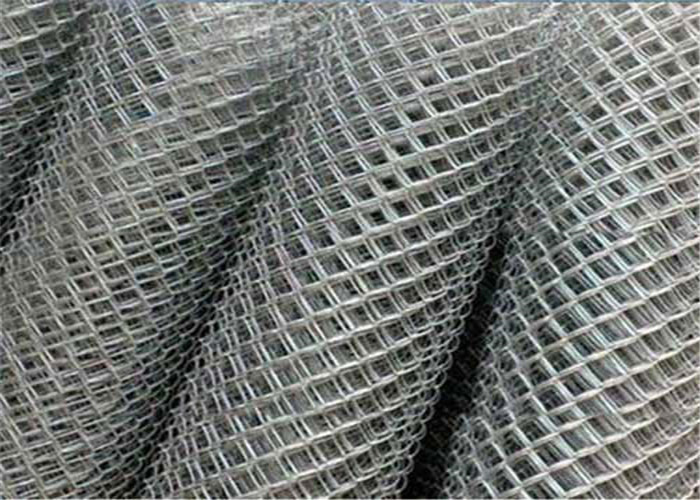

Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
1.Chain link fence fabric basic information
Chain link fence fabric also named diamond wire mesh, rhombic wire mesh, cyclone fence, is one of the most popular choices of fence for both light residential and heavy commercial fence applications.
2.Chain Link Fence Mateiral
Mainly galvanized iron wire, stainless steel wire, PVC wire and aluminium alloy wire.
3.Chain link fence specifications
| Mesh Opening | 1''- 4''(25mm-100mm), popular: 50x50mm |
| Wire Diameter | 18#-7#(1.2mm - 4.5mm), popular: 2.5mm, 3mm, 3.5mm |
| Roll Width | 0.5m - 5m, popular: 1.5m, 1.8m, 2m, 2.5m, 3.6m |
| Roll Length | 1m - 50m, popular: 10m, 15m, 25m |
| | Specifications can be made according to your requirements |
4.Chain Link Fence Surface Treatment
PVC coated, electro (zinc coating 15-20g/m2), or hot dipped galvanized (zinc coating 35-300g/m2).
5.Chain Link Fence Fabric Characteristics
The mesh is even in size and smooth in surface; The weaving is simple, artistic and practical; The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.
| Opening | 1" | 1.5" | 2" | 2.25" | 2.4" | 2.5" | 3" | 4" |
| 25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm |
| Wire diameter | 18#-7# |
| 1.20mm-5.00mm |
| Length of the roll | 1.0m-50m |
| Width of the roll | 0.5m-5.0m |
| Materials and specifications can be made according to customers specific requirements. |
Fabric with 2-in. [50.8mm] or 2-1/8-in. [54.0-mm] mesh, in heights less than 72 in [1829 mm], shall be knuckled at both selvages. Fabric 72 in. [1829 mm] high and over shall be knuckled at one selvage and twisted at the other. These are standard selvages. Other selvage combinations will be supplied only if specified by the purchaser.Usually selvages for fabrics less than 2-in. [50.8mm] shall be knuckled at both edges.
A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or LLDPE-coated steel wire. Thewires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence
