Brand Name : XR
Model Number : CLF-016
Place of Origin : CHINA
MOQ : One Set
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 6000 Sets Per Week
Delivery Time : 7-10 Days After Get The Payment
Packaging Details : Wrap Up The Two Edges Of The Crimped Rolls With The Plastic Weaving Bags
Certification : SGS
Price : Negotiation
Metal type : Iron
Feature : Easily Assembled, Eco Friendly, Rodent Proof, Rot Proof
Pressure Treated woode type : Pressure Treated
Frame : Metal
Item : Chain Link Mesh Fence
Usage : Traffic Control And Crowd Control
Movable Temporary Chain Link Fence For Traffic Control And Crowd Control
Movable Temporary Chain Link Fence Description
Temporary chain link fence is also called mobile fence mesh, temporary police.
Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.
They are popular in Australia, American, England, Africa market...
1.Chain Link Temporary Fence Specification
Chain Link Fence Specs | |||
Wire dia | 13-12Guage(2.4--2.7mm) | 12-11Guage(2.7--2.9mm | 11Guage (3.0mm) |
Opening | 50*50mm; 60*60mm; 75*75mm | ||
Application | Economy | Standard residential | Light commercial |
Coating | Galvanized before weaving | Galvanized before coating | 200g/m2 |
Frame Pipes | 50*50mm; 60*60mm; 75*75mm | ||
Height | 1.8m , 2.1m | ||
Width | 2.1m , 2.4m , 2.5m , 2.9m |
2.Temporary Chain Link Fence Details
A.Panels

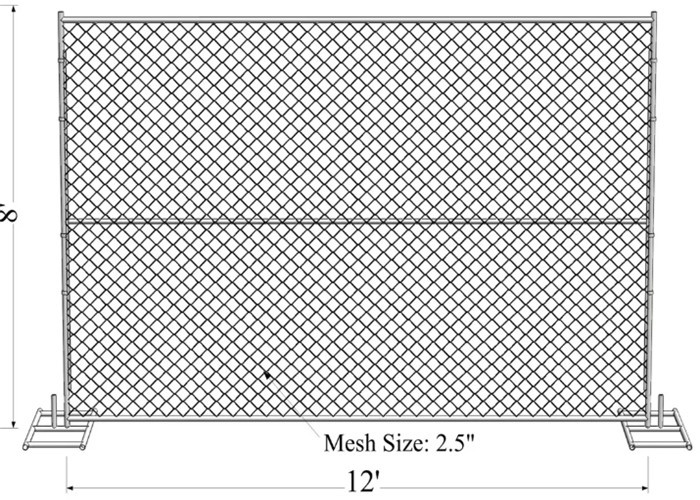

Constructed of high strength tubular galanized tubing. Panel size is 12' wide x 6' tall. Panels are filled with galvanized chain link mesh and wrapped on all four sides to ensuring both longevity and easy of loading and unloading when moving from one project to the next.
B.Stands
Panels stands are perfect for any type of ground they are wide in stance to ensure stability while light weight and designed to stack when transporting from and too jobsite.
C.Fastenings
The panels and posts are jointed together with bolts or rivets, using the steel flat bar,or special steel clamps,
all nuts are self-locking. This also can be designed as the special clients requests.
3.Temporary Chain Link Fence Advantage
Easy installation or maintenance replacement
Can be easily relocated
Minimum repair required only damaged panels to be replaced
Standard/custom modular sizes
4. Temporary Chain Link Fence Use:
· Construction sites and private property
· Residential housing sites and schools
· For major public events,sports,concerts,festivals,gatherings,Sports playground or swimming pools.
· Traffic control and crowd control.
Galvanized Chain Link Mesh Fence | ||||
Wire Diameter(mm) | Mesh Size(mm) | Roll Length(m) | Net Heights (mm) | Post Heights(mm) |
1 | 5x5 |
10 | 500 | 1000 |
1000 | 1500 | |||
1.2 | 10x10 | 1250 | 2000 | |
20x20 | 1500 | 2000 | ||
1.4 | 20x20 | 2000 | 2500 | |
1.8 | 30x30 | 2500 | 3000 | |
2.5 | 40x40 | 3000 | 3500 | |
2.8 | 50x50 | 4000 | 4500 | |
3.0 | 50x50 | 5000 | 5500 | |
4.0 | 60x60 | 5000 | 5500 | |
PVC Coated Chain Link Mesh Fence | ||||
Wire Diameter(mm) | Mesh Size(mm) | Roll Length(m) | Net Heights(mm) | Post Heights(mm) |
1.8 |
20x20 |
10 | 500 | 1000 |
1000 | 1500 | |||
1250 | 2000 | |||
1500 | 2000 | |||
1.8 | 30x30 | 2000 | 2500 | |
2.5 | 40x40 | 2500 | 3000 | |
2.8 | 50x50 | 3000 | 3500 | |
3.0 | 60x60 | 4000 | 4500 | |
4.5 | 60x60 | 5000 | 5500 |

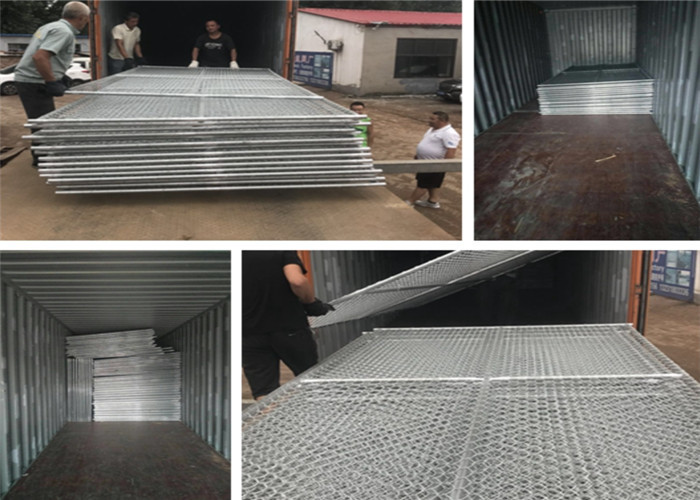

5.Temporary Chain Link Fence Packing And Delivering
1. it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
2. it has 4 metal corners to keep the pallet more strong.
3. it has metal plate under the plastic bandage to reduce the a pressure of fence panels.
4. wooden plate on top which can protect the fence panels avoid being crushed by other pallets
![]() |

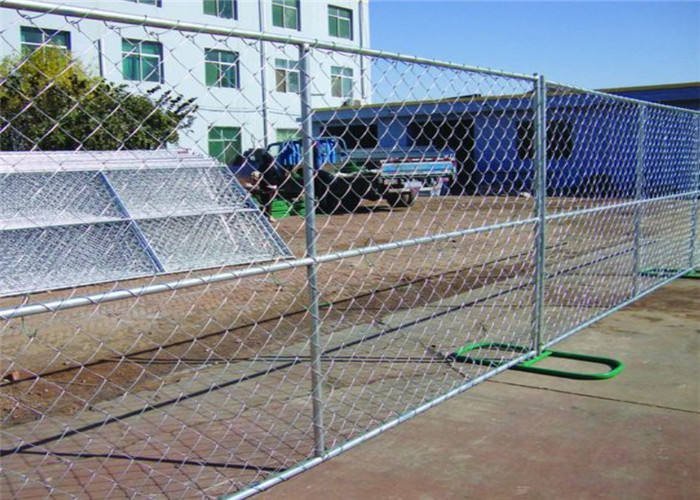

8'x12' Movable Temporary Chain Link Fence For Traffic Control And Crowd Control Images |
